DIGITAL MULTIMETER

0 reviews 0 orders
SAR 266.95 Each

RS PRO IDM19 Handheld Digital Multimeter

Part Number
113A
Manufacturer
RS Pro
Item Id
1231803
Origin
TAIWAN, PROVINCE OF CHINA
Tariff
90303100
Weight(g)
154.00
Supplied/Stocked by
RS COMPONENTS CO. LTD.

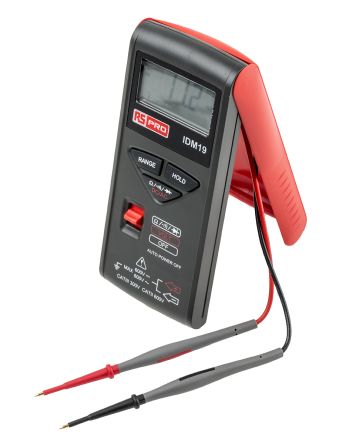

RS PRO IDM19 Pocket Digital Multimeter

RS PRO IDM19 pocket digital multimeter suitable for troubleshooting electrical and electronics problems and for measuring values like voltage, resistance and a tester for diode and continuity. This meter has an LCD display where the measurement readouts can be viewed. The instrument defaults to autorange mode when you turn it on which means this device selects the best range automatically.

RS PRO have a great range of meters that are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits:

Compact slim line design multimeter
3400 Counts LCD display with bargraph
Autoranging
Auto power off
Overload protection
5 functions / 16 ranges
Selectable manual / autoranging
Integral test probes stow away neatly behind hinged back panel
Conforms to EN61010-1 (safety rating) CAT III 300 V, CAT II 600 V
CE, UL approved
Resistance: 340 Ω, 3.4 kΩ, 34 kΩ, 340 kΩ, 3.4 MΩ, 34 MΩ ±2%
DC Volts: 340 mV, 3.4 V, 34 V, 340 V, 600 V ± 2%
AC Volts: 3.4 V, 34 V, 340 V, 600 V ± 4% (50- 60 Hz)
Diode Test
Continuity Test
DATA Hold
Resolution: 0.1 mV, 0.1 Ω
Dimensions: 125 mm (H) x 60 mm (W) x 24 mm (D)
Weight: Approx. 110 g

What Does This Include?

2 x LR 44 1.5 V coin cells (fitted)
Instructions
Integral test leads Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.

Specifications
Multimeter TypeHandheld
Absolute Maximum Resistance Measurement34MΩ
Absolute Maximum DC Voltage Measurement600V dc
Absolute Maximum AC Voltage Measurement600V ac
Functions MeasuredAC Voltage, Continuity, DC Voltage, Diode, Resistance
True RMSNo
Maximum Frequency60Hz
Display TypeDigital
Model Number pIDM19
DC Voltage Measurement Resolution0.1mV dc
AC Voltage Measurement Resolution1mV ac
Resistance Measurement Resolution100mΩ
Width60mm
Height22mm
Minimum Operating Temperature0°C
Safety Category LevelCAT III
Weight110g
Battery Life70 h
Length125mm
Best AC Voltage Accuracy±4% + 5 Digits
Maximum Operating Temperature+40°C
Best Resistance Measurement Accuracy±2% + 4 Digits
Best DC Voltage Accuracy±2% + 2 Digits
Dimensions125 x 60 x 22mm
Battery TypeLR44
Safety Category Voltage300V
